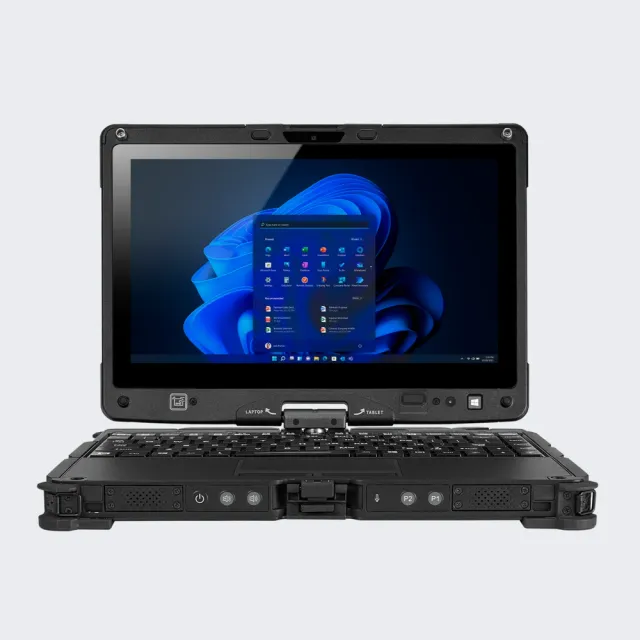

ETS-110
Rugged Laptops A compact, lightweight convertible that quickly transforms from an 11.6" notebook into a tablet computer.
- Display
- 11.6"
- Form factor
- Convertible notebook / tablet

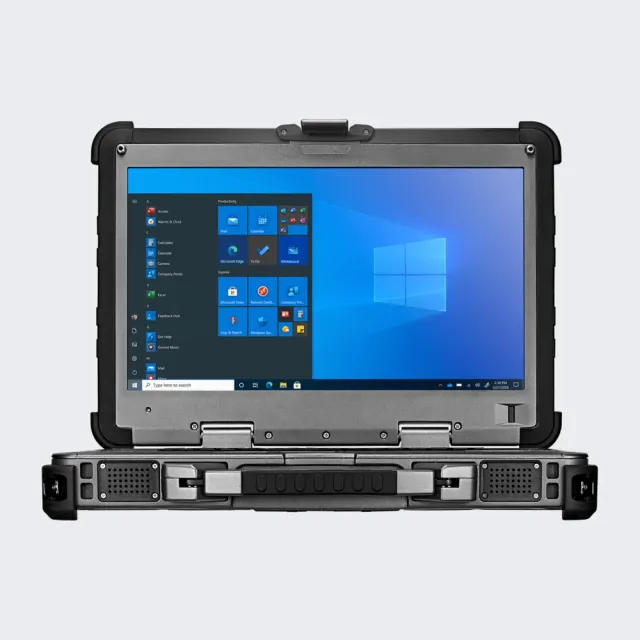

ETS-500
Rugged Laptops For a larger 15.6" high-definition display or the ability to add PCI / PCIe cards, the ETS-500 is the powerful option.
- Display
- 15.6" HD
- Expansion
- PCI / PCIe cards

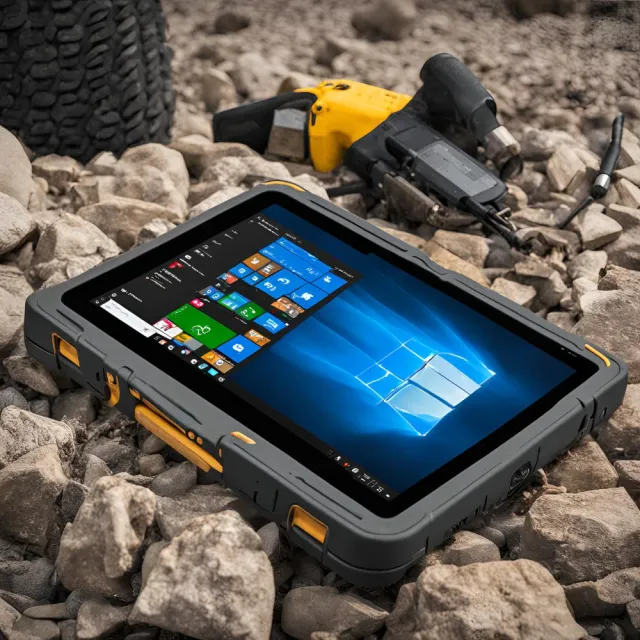

Rugged Tablet
Rugged Tablets A 590 g rugged tablet that withstands shocks, spills, vibration and six-foot drops — suited to critical tasks such as forklift operation and UAV control.
- Weight
- 590 g
- Certification
- MIL-STD-810H
- Ingress
- IP67 (1 m for 30 min)
- Operating temp
- −29°C to +63°C
Full specifications (+2)
- Display
- 16:10 · 1,000 nits
- Drop
- 6 ft

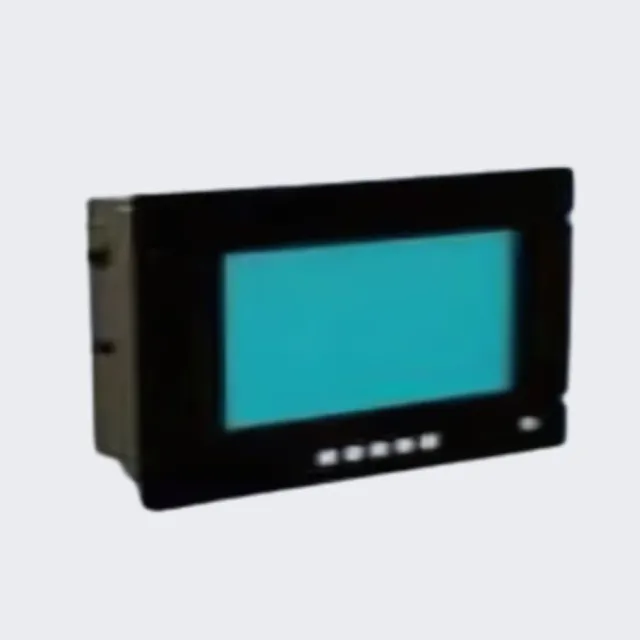

ETS-Display 1
Rugged Displays An 8.4" rugged display engineered for superior performance in harsh environments.
- Display size
- 8.4"
- Resolution
- 800 × 600
- Brightness
- 350 cd/m²
- Contrast ratio
- 600:1
Full specifications (+6)
- Panel
- TFT active matrix
- Backlight
- White LED
- Inputs
- VGA, C-Video
- Input voltage
- 12 V DC, 230 V AC (optional)
- Environmental
- As per JSS 55555
- EMI/EMC
- As per MIL-STD-461E

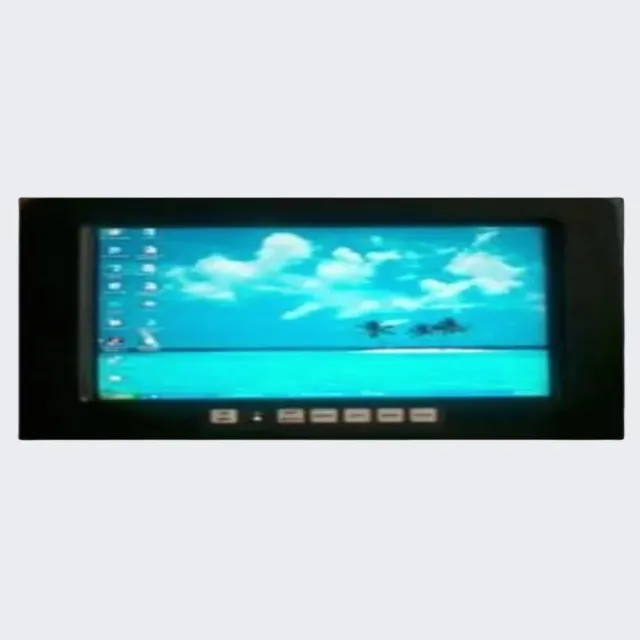

ETS-Display 2
Rugged Displays A rugged 10.4" TFT display with 1024 × 768 resolution, 1000:1 contrast and 400 cd/m² brightness.
- Display size
- 10.4"
- Resolution
- 1024 × 768
- Brightness
- 400 cd/m²
- Contrast ratio
- 1000:1
Full specifications (+6)
- Panel
- TFT active matrix
- Backlight
- White LED
- Inputs
- VGA, C-Video
- Input voltage
- 12 V DC, 230 V AC (optional)
- Environmental
- As per JSS 55555
- EMI/EMC
- As per MIL-STD-461E

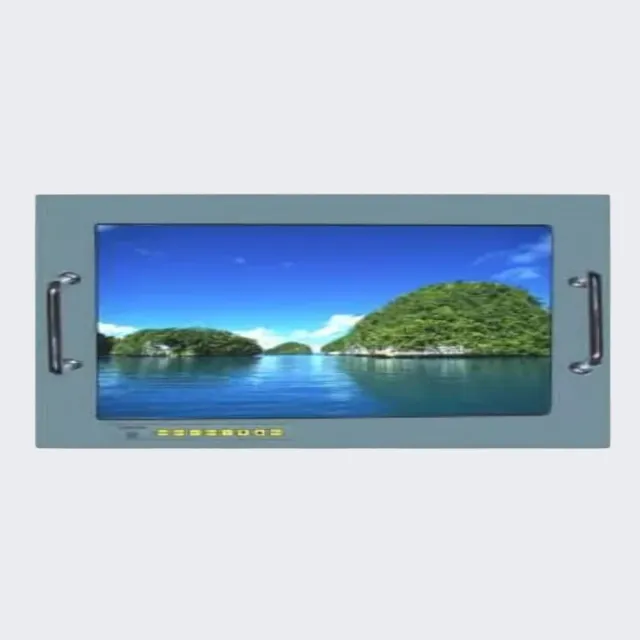

ETS-Display 3
Rugged Displays A rugged 15" / 17" / 19" TFT display family with up to 1280 × 1024 resolution and 560–600 cd/m² brightness.
- Display size
- 15" / 17" / 19"
- Resolution
- 1024 × 768 / 1280 × 1024
- Brightness
- 560–600 cd/m²
- Contrast ratio
- 500:1 / 700:1 / 700:1
Full specifications (+6)
- Panel
- TFT active matrix
- Backlight
- CCFL / LED / White LED
- Inputs
- VGA, C-Video, DVI, S-Video
- Input voltage
- 230 V AC, DC input (optional)
- Environmental
- As per JSS 55555
- EMI/EMC
- As per MIL-STD-461E

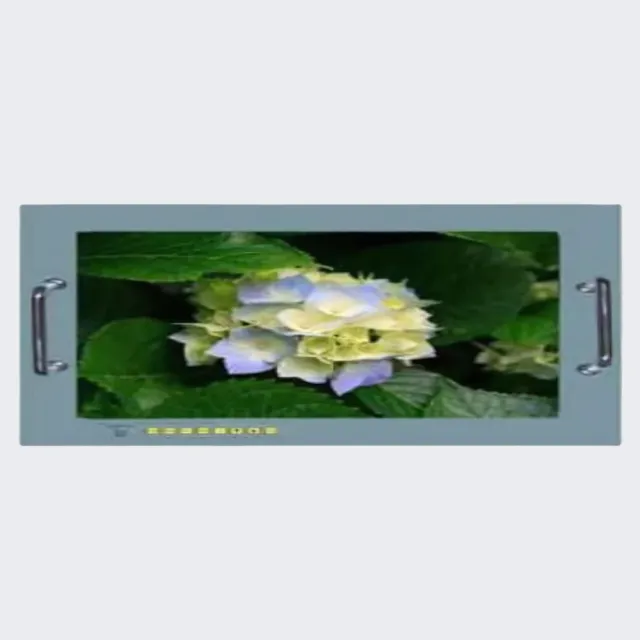

ETS-Display 4
Rugged Displays A rugged 21.3" TFT display with 1920 × 1200 resolution and 1000:1 contrast.
- Display size
- 21.3"
- Resolution
- 1920 × 1200 (UXGA)
- Brightness
- 300 cd/m²
- Contrast ratio
- 1000:1
Full specifications (+6)
- Panel
- TFT active matrix
- Backlight
- CCFL / LED
- Inputs
- VGA, C-Video, DVI
- Input voltage
- 230 V AC
- Environmental
- As per JSS 55555
- EMI/EMC
- As per MIL-STD-461E

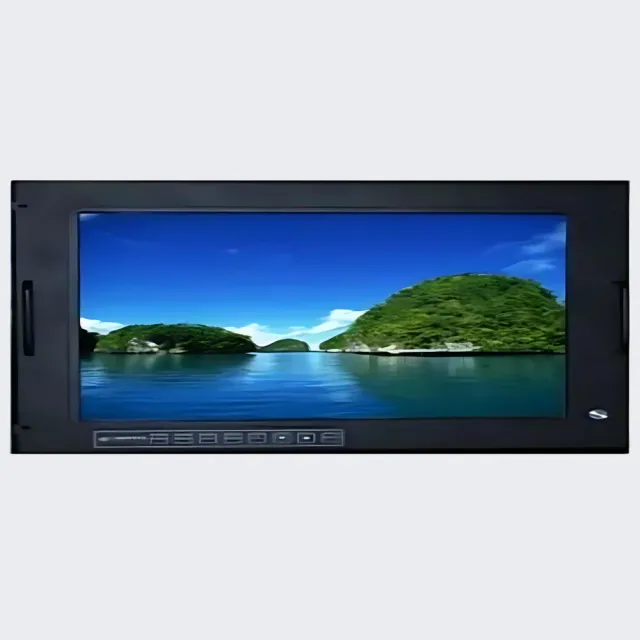

ETS-Display 5
Rugged Displays A rugged 24.1" TFT display with 1920 × 1200 resolution, 800:1 contrast and multiple input connectors.
- Display size
- 24.1"
- Resolution
- 1920 × 1200 (UXGA)
- Brightness
- 300 cd/m²
- Contrast ratio
- 800:1
Full specifications (+5)
- Panel
- TFT active matrix
- Backlight
- CCFL / LED / White LED
- Inputs
- VGA, C-Video, DVI, S-Video
- Input voltage
- 230 V AC, DC input (optional)
- Environmental
- As per JSS 55555

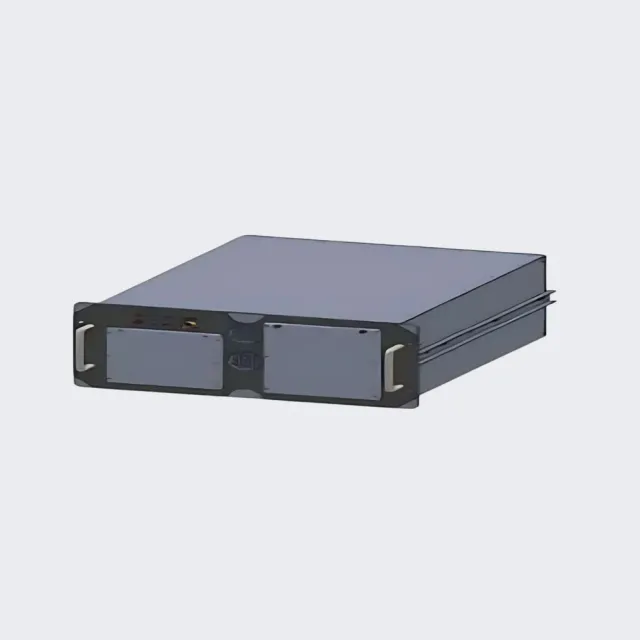

ETS-Server 1
Rugged Servers An ultra-rugged server engineered for extreme performance and durability in demanding environments.
- Processor
- Intel Xeon E5-2609 @ 2.4 GHz
- Memory
- 4 × 8 GB DDR3 1600 ECC DIMM
- Storage
- 2 × 1 TB 2.5" SATA SSD
- Graphics
- NVIDIA Quadro K2200, 4 GB GDDR5 (PCIe 2.0 x16)
Full specifications (+8)
- LAN
- 2 × 1 GbE, 2 × 10 GbE, 1 × 1 GbE (iSCSI)
- USB
- Front: 2 × USB 2.0, 2 × USB 3.0 · Rear: 2 × USB 2.0, 2 × USB 2.0 (KB/mouse)
- Serial
- 1 × RS-232, rear panel (circular connector)
- Video out
- VGA, DVI, HDMI (rear panel)
- Connectors
- Circular Series-III
- Power
- 230 V AC, 500 W redundant PSU with active PFC
- Environmental
- As per JSS 55555
- EMI/EMC
- As per MIL-STD-461E

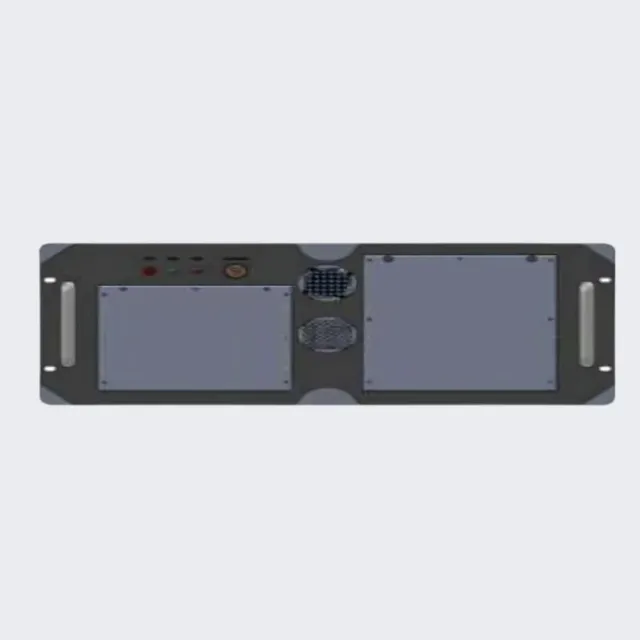

ETS-Server 2
Rugged Servers A rugged 5U server designed for high performance and durability in extreme environments.
- Size
- 5U
- Processor
- Intel Xeon E5-2609 @ 2.4 GHz
- Memory
- 4 × 8 GB DDR3 1600 ECC DIMM
- Storage
- 6 × 1 TB 2.5" SATA SSD
Full specifications (+9)
- Graphics
- NVIDIA Quadro K2200, 4 GB GDDR5 (PCIe 2.0 x16)
- LAN
- 2 × 1 GbE, 4 × 10 GbE, 1 × 1 GbE (iSCSI)
- USB
- Front: 2 × USB 3.0 · Rear: 2 × USB 2.0, 2 × USB 2.0 (KB/mouse)
- Serial
- 1 × RS-232, rear panel (circular connector)
- Video out
- VGA, DVI, HDMI (rear panel)
- Connectors
- Circular Series-III
- Power
- 230 V AC, 500 W redundant PSU with active PFC
- Environmental
- As per JSS 55555
- EMI/EMC
- As per MIL-STD-461E

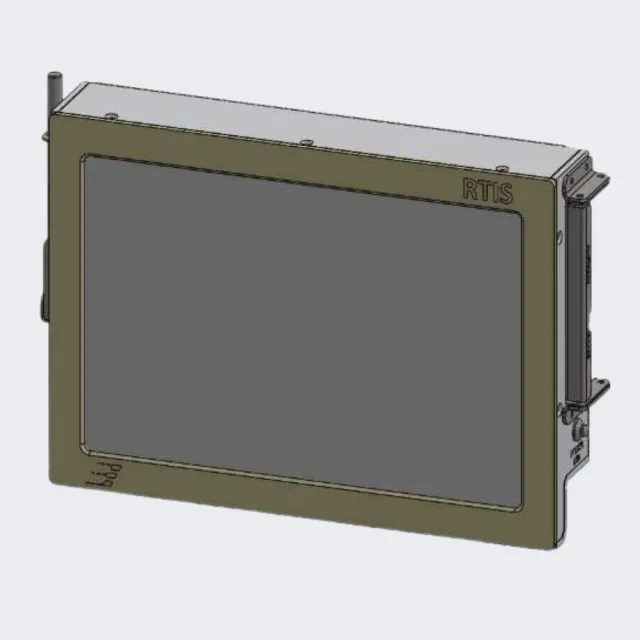

10.1" Rugged Panel PC
Industrial PCs A rugged 10.1" panel PC with a 500-nit display, Intel Atom E3940 and MIL-D-38999 connectors, tested to IS 9000 and IEC 60571.
- Display
- 10.1" TFT, 500 nits, 1280 × 800
- Touch
- 4-wire resistive (or capacitive)
- Processor
- Intel Atom E3940 @ 1.6 GHz, Intel HD Graphics
- Memory
- 4 GB RAM (expandable)
Full specifications (+11)
- Storage
- 128 GB mSATA (expandable)
- Power
- 12–36 V DC
- Connectors
- Combo & Ethernet: MIL-D-38999 Series 13-pin · USB, RS-232 standard
- Mounting
- Wall or VESA
- Operating temp
- −10°C to +55°C
- Vibration
- IS 9001 Pt. XIII, 5–150 Hz
- Shock
- IS 9000 Pt. VII Sec. I — half-sine, 20 g peak, 11 ms
- Dry heat
- IS 9000 Pt. III Sec. V — operating at 55°C for 16 h
- Cold
- IS 9000 Pt. II — operating at −10°C for 2 h
- Dust
- IS 9000 Pt. XII — operating, 1 h
- EMI/EMC
- IEC 60571 (radio interference, surge & ESD, transient burst, supply variation, insulation) · EN 50238 interference limits
Vigil Eye
AI for Defence An AI-based driver monitoring system that analyses driver vigilance through a camera and warns drivers when they are drowsy or inattentive — protecting driver, passengers, cargo, vehicle and other road users.
Triyam
AI for Defence A platform powered by AI-based image analysis tools and intelligent algorithms, running varied application modules.
- Each application module performs a specific function independently.
- Early threat detection enables timely corrective action to mitigate the risk of damage.

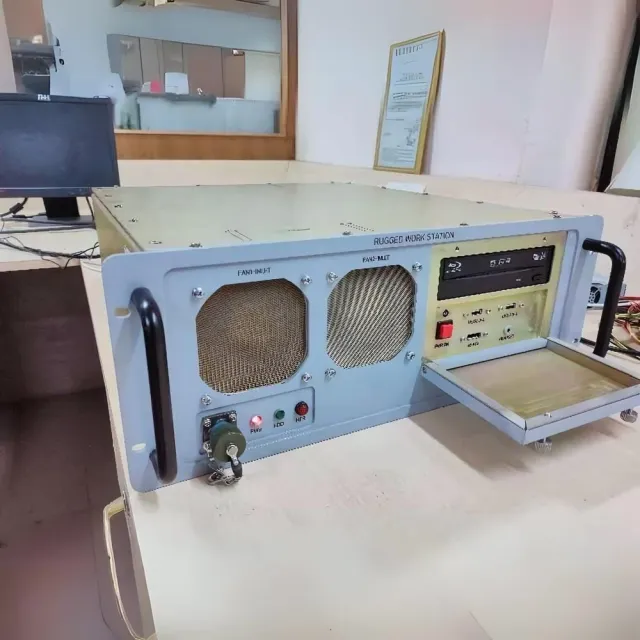

Rugged Workstation
Accessories A 4U rack-mount rugged workstation built to endure the harshest environments, with robust components and high durability standards.
- Processor
- Intel Xeon E5 @ 1.8 GHz, Intel C612 chipset
- Graphics
- NVIDIA Quadro P2000
- Memory
- 8 GB RAM (expandable)
- Storage
- 128 GB SSD (expandable)
Full specifications (+8)
- Optical
- Blu-ray / DVD-RW dual layer
- Audio
- PCA HDA1E
- I/O
- 2 × USB (MIL-D-38999), 2 × Ethernet (Fas-T), 1 × RJ45 (MIL circular), RS-232 (D-sub)
- Video out
- DVI, VGA, HDMI
- Form factor
- 19" rack-mount, 4U, with slides
- Power
- 230 V AC (redundant)
- Operating temp
- −10°C to +55°C · cooling fans & heaters
- Ingress
- IP65

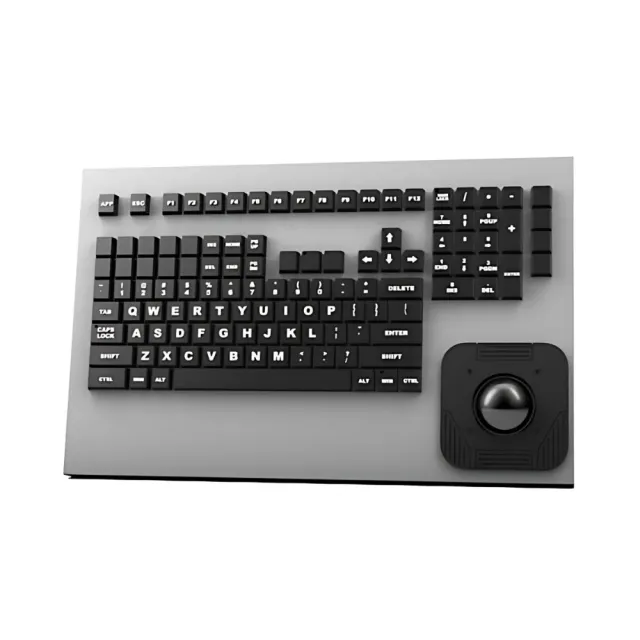

Rugged Keyboard & Pointing Device
Accessories A rugged 88/101-key keyboard with integrated trackball and mouse, built to JSS 55555 environmental and MIL-STD-461E EMI/EMC standards.
- Certifications
- NEMA 4X, UL 60950, FCC Part 15 Class B
- Layout
- 88/101 keys with integrated trackball and mouse
- Interface
- USB / PS/2 · all Windows operating systems
- Key travel
- 0.055"
Full specifications (+6)
- Actuation force
- 200 g ± 20 g
- Feedback
- Tactile, mechanical snap
- Key life
- 10 million cycles
- Power
- 50 mA @ 5 V (from keyboard port)
- Environmental
- As per JSS 55555
- EMI/EMC
- As per MIL-STD-461E
